Transit Duo Pro is the compact dual-cellular vehicle router: two LTE modems, Wi-Fi 6, ignition sensing, and USB-C power-bank inputs so the box can ride through a crank. This SKU is the dual Cat-12 radio.
Description
- Peplink MAX Transit Duo Pro, dual Cat-12. Edge compute with 8 GB storage. RS-232 serial.
- Recommended users 25-150.
Wi-Fi
- Wi-Fi 6, 2×2 MIMO, simultaneous dual-band. AP and/or Wi-Fi WAN.
- 2× RP-SMA Wi-Fi connectors.
Modem
- 2× embedded LTE Cat-12 modems with redundant SIM slots.
- Nano-SIM, Peplink eSIM, BYO eSIM (2 profiles per modem).

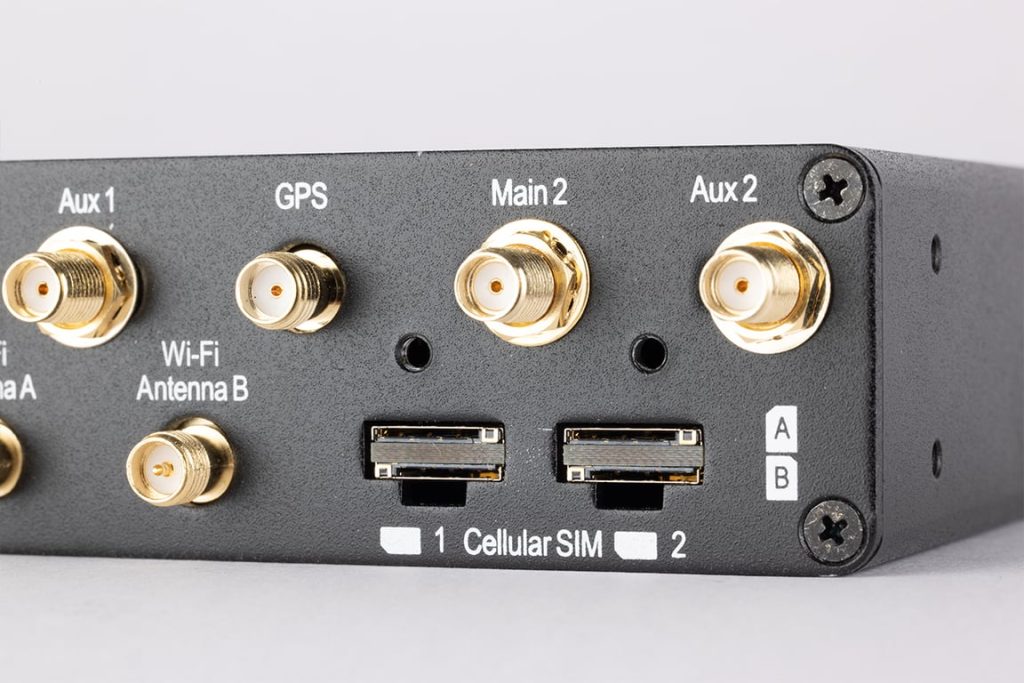

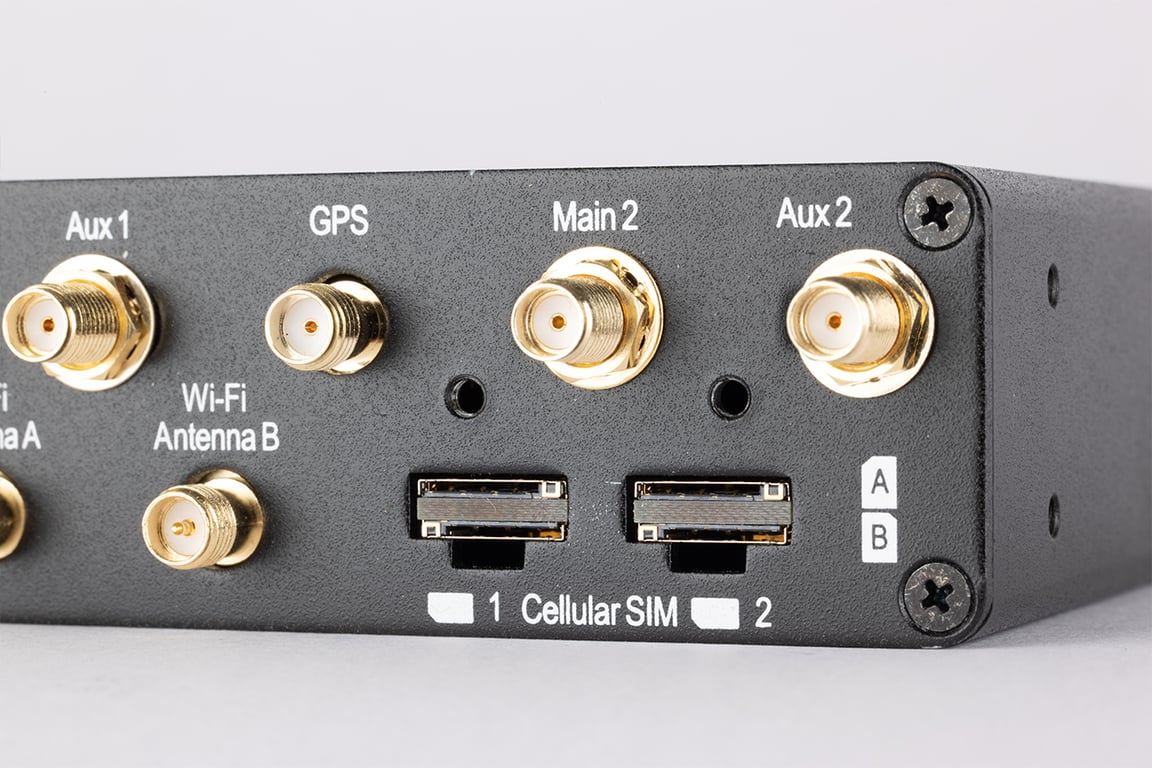

- 4× SMA cellular plus 1× SMA GPS.
Speeds
- Router throughput 1 Gbps.
- SpeedFusion: 400 Mbps unencrypted / 200 Mbps 256-bit AES.
- Cellular max theoretical: Cat-12 600 Mbps down / 150 Mbps up per modem. Peak radio rates are not a site guarantee.
- 1× gigabit WAN, 1× gigabit LAN.
Power
- 12-56 V DC, terminal block, two USB-C 20 V / 3 A inputs, ignition sensing.
- 10 W nominal, 18 W max. Operating temperature −40°C to 65°C.
Where it fits
- Coaches, utes, and small vessels that need two LTE paths in a compact box.
- Cat-7 Duo Pro when Cat-12 is not required; BR2 Pro when both paths should be 5G.
Request a quote.
