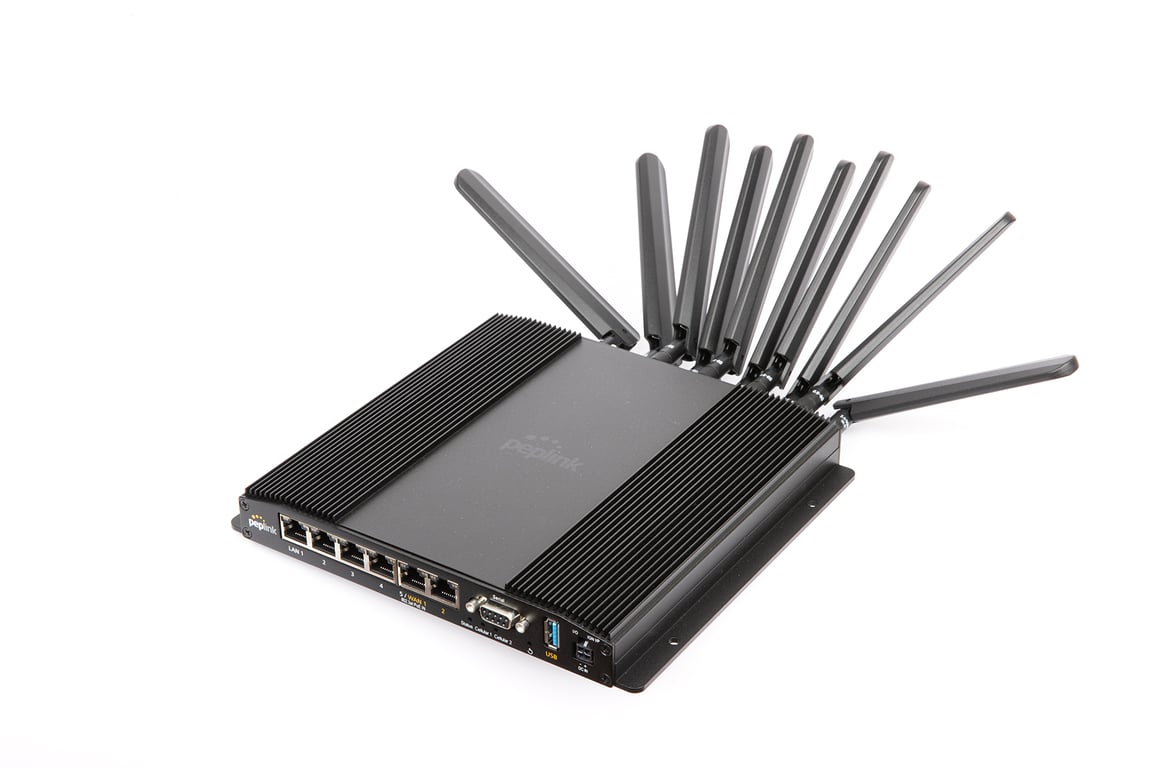

Peplink MAX BR2 Pro 5G

Tags Mobile Global Marine Global Mobile GMTS Connect 5G Cellular Fits Antenna Max Duo Multi-WAN Rugged Peplink

SKU MAX-BR2-PRO-5GK-T-PRM

● Request a quote. No payment is taken. Login to view trade pricing.

PrimeCare licence

Hardware only (year in the box) 1-year licence 2-year licence 4-year licence

Details about this licence

On by default: 2 extra years of PrimeCare extended warranty, software and support on top of the year in the box (3 years cover in total). Untick for hardware only.

PrimeCare is Peplink vendor care for the licence term, not a separate GMTS 3-year warranty SKU. It covers:

Extended hardware warranty, firmware/software updates, and technical support
InControl 2 cloud management
SpeedFusion Connect (SFC, formerly SpeedFusion Cloud): Peplink-hosted SpeedFusion endpoints so you can bond, smooth, or hot-failover WANs without a second Peplink at the far end

Active PrimeCare includes an SFC usage allowance. The quota depends on the router tier. After that allowance, SFC keeps running at a reduced speed unless you add extra SFC capacity. Hardware-only quotes keep the year in the box and do not add a care or SFC line.

Optional extras

Peplink 4-pin to USB-C power cable

Virtual WAN licence

None

Virtual WAN licence (1 extra VLAN WAN)

Virtual WAN licence (2 extra VLAN WAN)

Virtual WAN licence (3 extra VLAN WAN)

Off by default. Ticked extras add as a separate quote line.

Request a quote Talk to GMTS

Dual-5G rugged MAX - two modems, Wi-Fi 6, 2.5G WANs, PoE in. Request a quote.

BR2 Pro is the dual-modem sibling of BR1 Pro: two 5G radios, two 2.5G Ethernet WANs, Wi-Fi 6, and PoE in so one cable can carry power and data. Use it when a single cellular path is not enough - two carriers, or one carrier plus a second SIM path, without adding a second router.

Description

Peplink MAX BR2 Pro 5G. Ignition sensing, serial for OOBM, Docker edge compute (8 GB).
Recommended users 1-150.
Add a MAX Adapter 5G when you need a third cellular WAN.

Wi-Fi

Wi-Fi 6, 2×2 MU-MIMO, simultaneous dual-band.
AP and/or Wi-Fi WAN. 2× RP-SMA Wi-Fi connectors.

Modem

2× embedded 5G modems, each with redundant SIM slots.
Nano-SIM, Peplink eSIM, BYO eSIM (2 profiles per modem).
8× SMA cellular plus 1× SMA GPS.

Speeds

Router throughput 1 Gbps.
SpeedFusion: 400 Mbps unencrypted / 200 Mbps 256-bit AES.
Cellular max theoretical (per modem): 5G 4.1 Gbps / 900 Mbps; Cat-20 2 Gbps / 211 Mbps. Peak radio rates are not a site guarantee.
2× 2.5G Ethernet WAN, 4× gigabit LAN, 1× USB 3.0 WAN.

Power

DC 10-30 V, passive PoE 48-56 V, 802.3at (25 W from PoE; use the bundled PSU when dual cellular plus USB WAN needs the full 30 W budget).
12 W nominal, 30 W max. Operating temperature −40°C to 65°C.

Where it fits

Vehicles, plant, and marine trays that need two independent 5G paths.
BR1 Pro 5G if one modem is enough; Transit Duo Pro for dual LTE in a smaller vehicle box.

Request a quote.

Use cases

Dual-5G SpeedFusion router for vessels and vehicles that cannot bet the trip on one modem or one Starlink plan.
Broadcast, government, and commercial jobs that need two cellular WANs plus Starlink.
Pair Antenna Max Duo (or 7-in-1 Mobility 42G) and a rugged AP.
