GMount for Starlink RV Gen3 V4
Starlink Standard flat (Roam / RV Gen3 V4) — includes DC power kit (12 V) in the dealer bundle.
Enterprise · GMTS product
Premium protective panels and enclosures for Starlink — designed, made and packed in New Zealand.
Product line-up
GMount for Starlink RV● Available
GMount for Starlink High● Available
GMount for Starlink Mini● Available
GMount Connect BaseOn request
What we supply
Built in New Zealand for real deployments
GMount started in the marine industry when customers needed a solid mounting and protection solution for Starlink, not a bag thrown over the dish. Today the same panels run on construction sites, trucks, ferries, vessels and buildings across the Pacific.
Designed & made here
Every product is designed, manufactured and packed in New Zealand. Production stays in-house so GMTS keeps control of the quality bar.
Rugged without killing the link
Impact-resistant HDPE shell and UV-stable acrylic top, spray, debris and hands off the dish while satellite lock stays clean.
GMTS on the WAN side
The Hobsonville team that commissions your Peplink router can spec the GMount, magnets and install on the same job.
Product line-up
Panels and Connect enclosures
Current models specified and supplied by GMTS — contact us for availability, mounts and install on your Starlink job.
GMount for Starlink High Performance
Starlink High Performance (flat maritime / HP dish).
GMount for Starlink Mini
Starlink Mini — compact enclosure for mobile and tight-space installs.
GMount Connect Base, upload photo in Page content
GMount Connect Base
Device-agnostic “lunch box” enclosure for modem, router, power and LAN — Peplink + Starlink + optional Victron battery.
GMount Connect Base Mini, upload photo in Page content
GMount Connect Base Mini
Embedded Starlink Mini with optional 5G — rapid deploy when a full-size panel will not fit.
Starlink Mini extension kits (5 m / 10 m / 15 m IP-rated power & Ethernet) available separately. Connect Base can be fitted with Neutrik RJ45, power button (LED), Victron or solar-style power panel, and optional battery support.
Gallery
Real installs & workshop shots

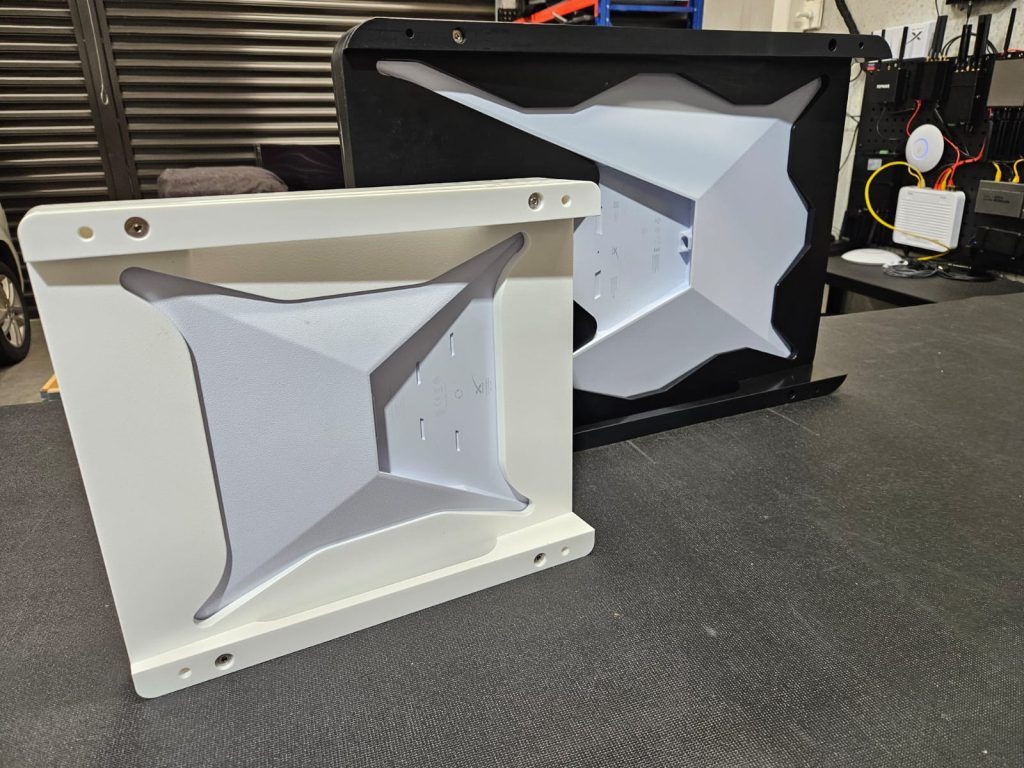

GMount install , field photo 1

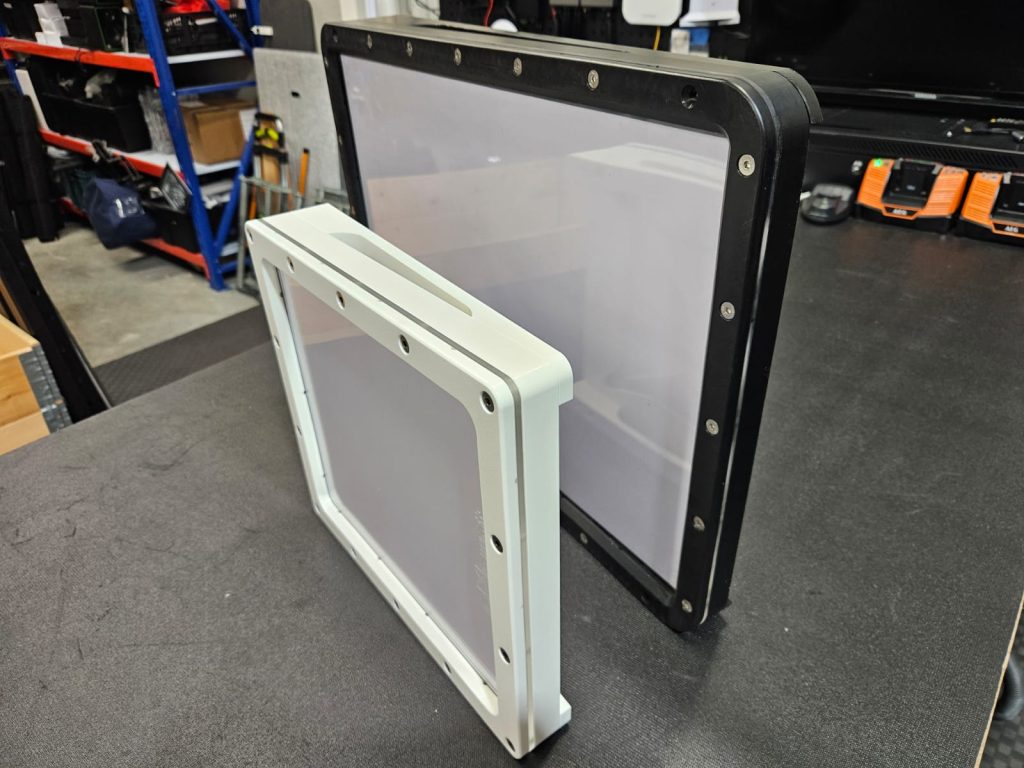

GMount install , field photo 2

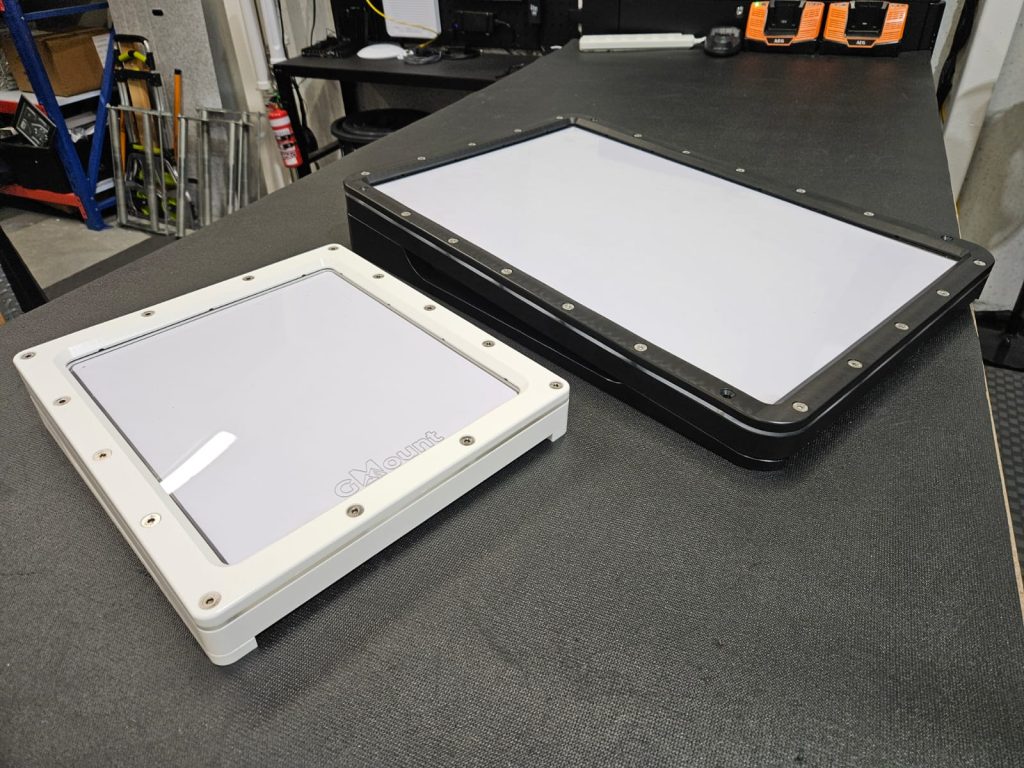

GMount install , field photo 3

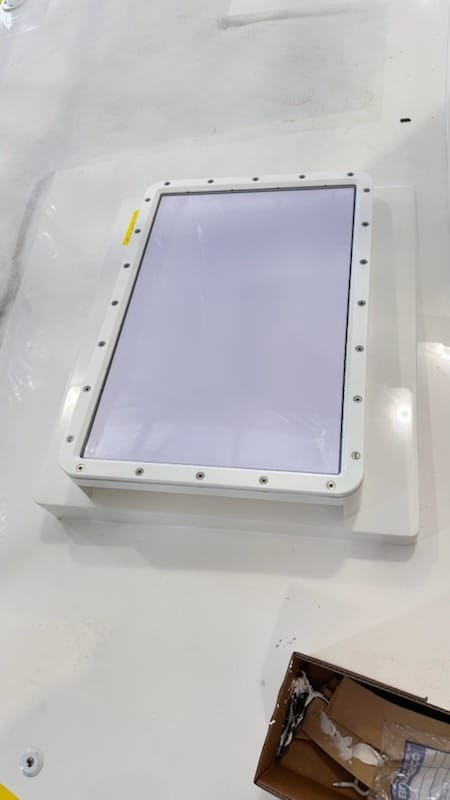

GMount install , field photo 4

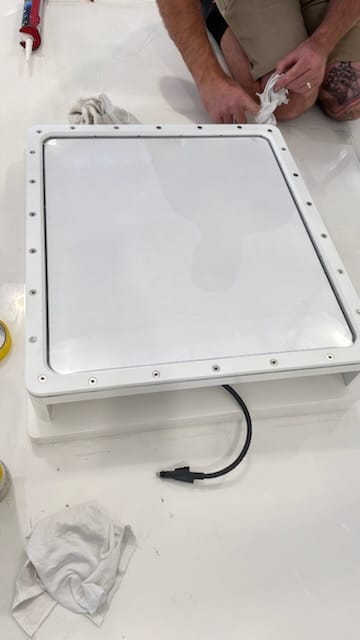

GMount install , field photo 5

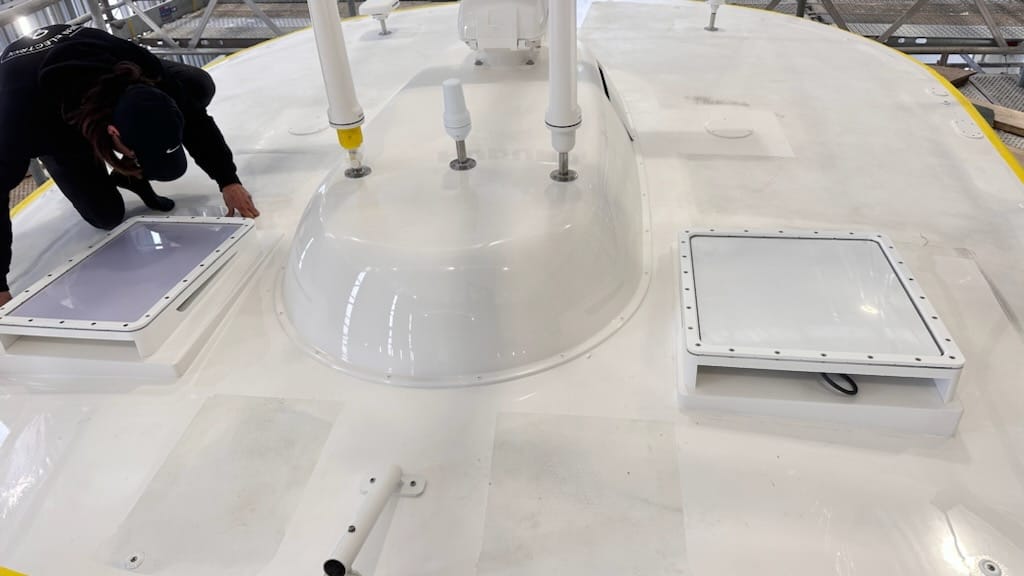

GMount install , field photo 6

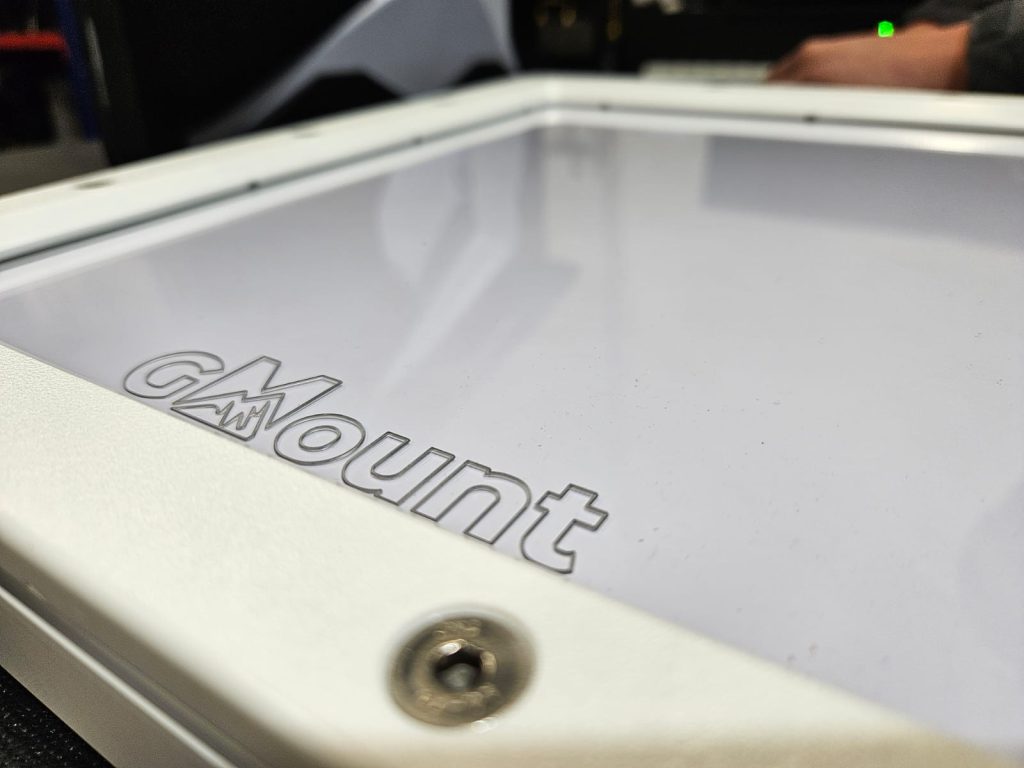

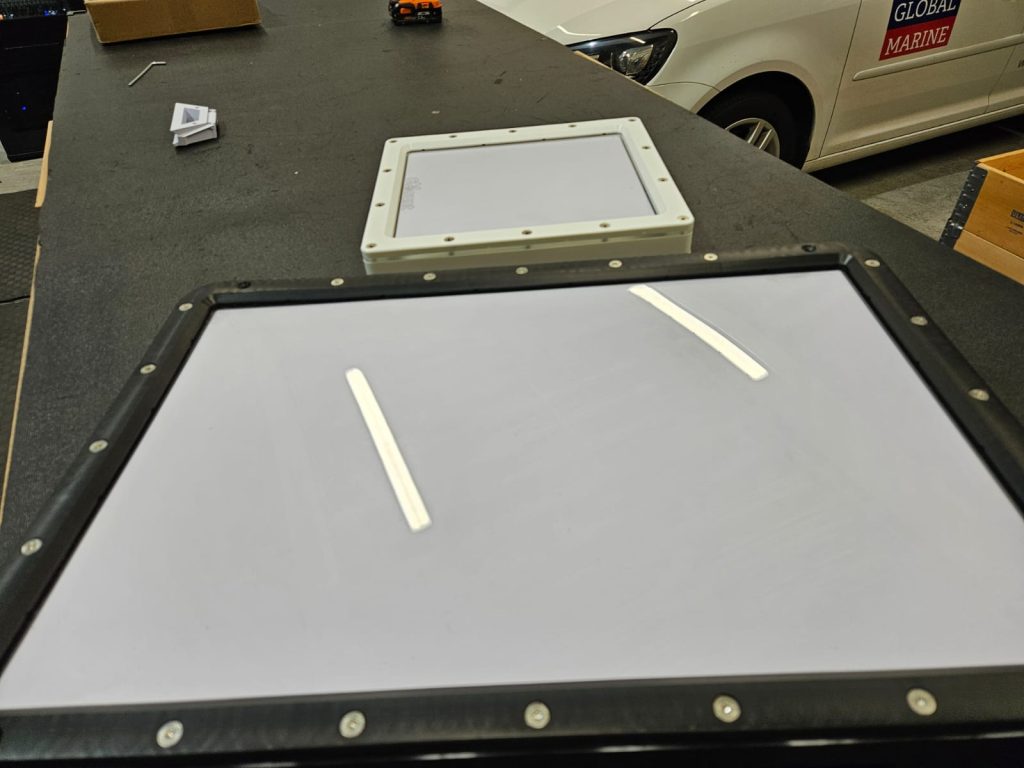

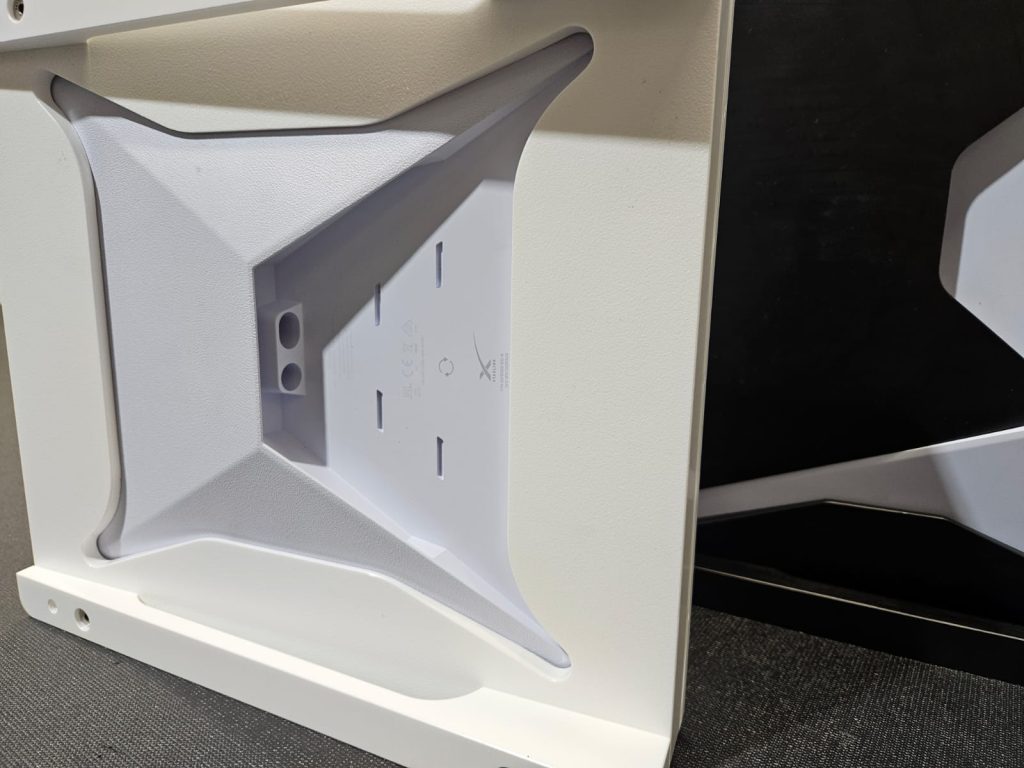

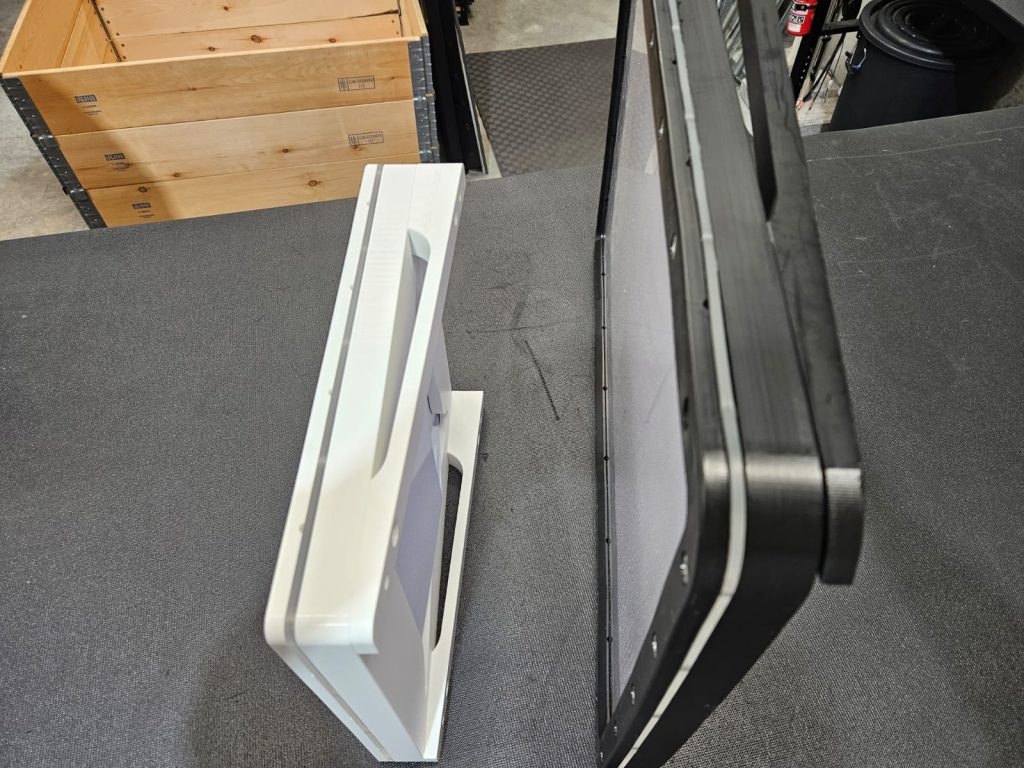

GMount field install
GMount field install
GMount field install
GMount field install
GMount field install
Engineering
Materials, mounting and specifications
HDPE boat board & stainless hardware
- Base & flange, UV-stabilised HDPE boat board: low moisture absorption, superior flatness, corrosion resistance, will not delaminate
- Top panel, UV-stable acrylic protective cover
- Fasteners, Stainless 316 or 304 screws, bolts and nuts
- Finish, Black or white standard; additional colours on MOQ
M6 threaded, wedge feet, or magnets
Top mount
Four through-holes fix from above when the underside is not accessible.
Bottom mount
Four pre-threaded M6 holes beneath the panel, direct to deck, roof or bracket.
Wedge feet (included)
Four-degree angled feet with M6 holes for bottom-up fixing and cable clearance.
Magnetic (optional)
88 mm N45 magnets for RV/HP (≈172 kg total vertical breakaway with a full set) or 66 mm for RV/Mini (≈80 kg). Order separately.
Shell rating
IP54 impact-resistant HDPE; acrylic top sealed to IP67 on Starlink panel models
Temperature
Field-tested −20 °C to +45 °C marine; designed to match Starlink −30 °C to +50 °C
Signal impact
No measurable attenuation reported on fitted panels
Typical install
15–30 minutes with basic hand tools on a prepared surface
Branding
Standard products carry GMount branding, no GMTS / Global Marine co-brand on the casing. Custom branding available on MOQ.
Connect Base I/O
3× LAN/WAN, power button, adjustable power panel (Victron or solar-style), space for Starlink RV/Mini PSU, optional Victron battery kit
Applications
Marine, mobile, site and rapid deploy
Marine & offshore
Salt spray, bridge clearance and deck aesthetics, installed on fishing boats, ferries and offshore platforms where the original Starlink mount is not enough.
RV, van & truck
Gen3 V4 and Mini panels sized for Roam installs that move with the vehicle. Magnetic options road-tested to 110 km/h sustained.
Construction & field sites
Connect Base for remote site connectivity, emergency response and mobile field offices, Starlink plus Peplink cellular in one protected box.
Residential & rural
Weather, birds and debris off the roof while the Peplink router inside keeps the WAN path alive.
FAQ
Common questions
What are GMount panels made from?
The base and flange are HDPE boat board — UV-stabilised, low moisture absorption, corrosion resistant and easily cleaned. The protective top is UV-stable acrylic. Fasteners are stainless steel (316 or 304).
What is the IP rating?
Starlink panel tops are sealed to IP67. The reinforced shell is rated IP54 overall; the rear is open by design (a sealed back can be specified). GMount is a protective component — it does not change the Starlink kit’s own environmental rating.
Will GMount block the Starlink signal?
We have measured no attenuation on panels fitted with GMount in the field. The acrylic top is chosen to stay clear enough for satellite lock.
What mounting options are available?
Every model has M6 pre-threaded holes beneath the panel (direct mount, wedge feet included, or magnets ordered separately). Top-down fixing uses four through-holes. Optional rubber-coated N45 magnets: 88 mm (≈44 kg breakaway each, for RV/HP) or 66 mm (≈20 kg breakaway, for RV/Mini). Magnets are not included as standard.
What colours can I order?
Black and white are standard. Polar White, Dolphin Grey, Glacier Grey, Seafoam and Sand Shade are available on some models — custom colours typically need an MOQ of 80–100 units. Re-branding (de-badge) is available on request with a higher MOQ.
What temperature range has GMount been tested to?
RV/Roam and maritime panels have been field-tested from −20 °C to +45 °C in marine use. With the open-back design and acrylic top, they should match the Starlink panel specification of −30 °C to +50 °C.
Are magnets safe on every vehicle roof?
We have road-tested magnet sets to 110 km/h sustained for 60 minutes on NZ highways. Thin bonnets, tailgates and soft roofs can show marks when magnets are removed — match the mount to the surface.
