The BR1 Mini 5G with Wi-Fi: a fanless metal 5G router for small sites, vessels, and vehicles that want the uplink and a local wireless network from the same box. PrimeCare (or the Mini feature pack) is what unlocks Ethernet WAN, Wi-Fi WAN, and SpeedFusion failover — plan the renewal, or those features stop being available.
Description

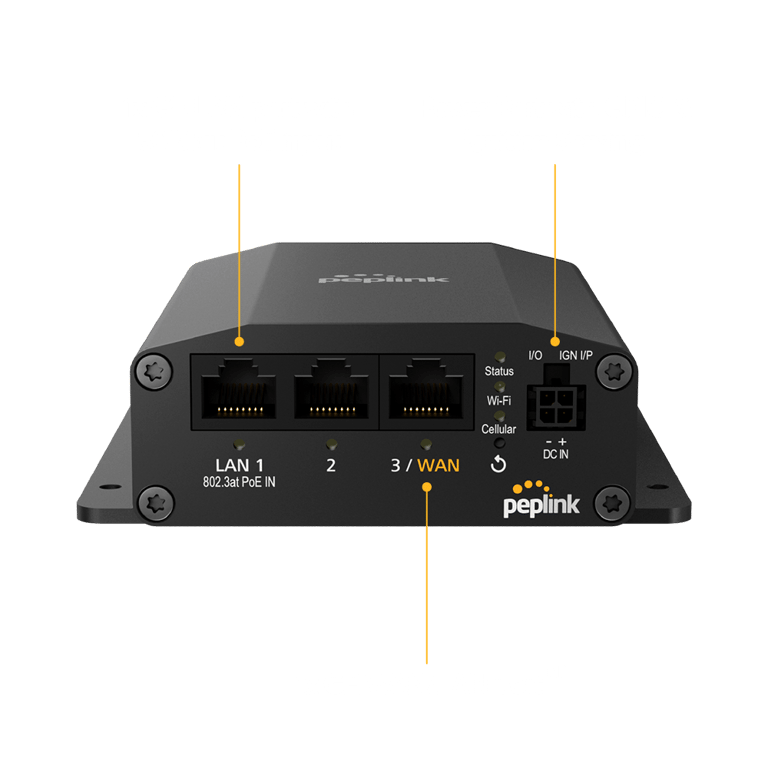

- Peplink MAX BR1 Mini 5G with Wi-Fi (MAX-BR1-MINI-5GN-T-PRM). Fanless metal case, DC 10–30 V or PoE in.
- InControl 2 for config push and firmware without a site visit.
Wi-Fi
- Onboard Wi-Fi (HW2 and later, which is what this SKU ships).
- Choose the no-Wi-Fi Mini 5G (MAX-BR1-MINI-5GN-T-M-PRM) where a site audit does not want a radio radiating.
Modem

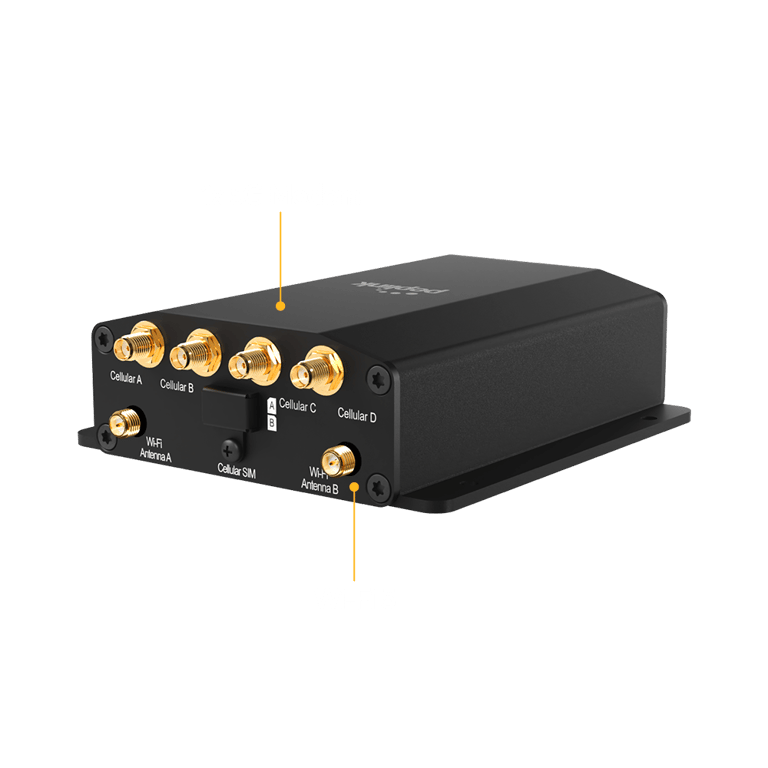

- 1× 5G modem. Two nano-SIM (4FF) slots plus Peplink eSIM / bring-your-own eSIM.
- RemoteSIM / FusionSIM on HW2+.
Speeds
- Up to 300 Mbps router throughput on the Mini family (Peplink).
- Cellular peak rates stay on the Mini 5G datasheet and are theoretical maxima.
In the box
- Router, 5G antennas, Wi-Fi antennas, 12 V 2 A 4-pin supply (ACW-632).
Where it fits
- Small cabinets, vessels, and vehicles that need local Wi-Fi from the same box.
- Neither Mini 5G has GPS — use Transit when InControl fleet tracking needs a GPS fix.
Request a quote.
