Peplink Antenna Max

Tags Cellular Global Marine Global Mobile GMTS Connect Cellular Enclosure Fits Antenna Max Peplink

SKU ANT-MAX

● Request a quote — no payment is taken. Login to view trade pricing.

Optional extras

Peplink Splitter Max

Off by default. Ticked extras add as a separate quote line.

Request a quote Talk to GMTS

IP68 antenna enclosure: put the router at the antenna so RF cables do not eat the 5G band. Request a quote.

Antenna Max is an outdoor cellular / Wi-Fi / GPS enclosure. The point is cable loss: a long RF run at 3.5 GHz can throw away the band you bought the router for. Mount the router inside the dome and take Ethernet (and PoE) down the mast instead.

Description

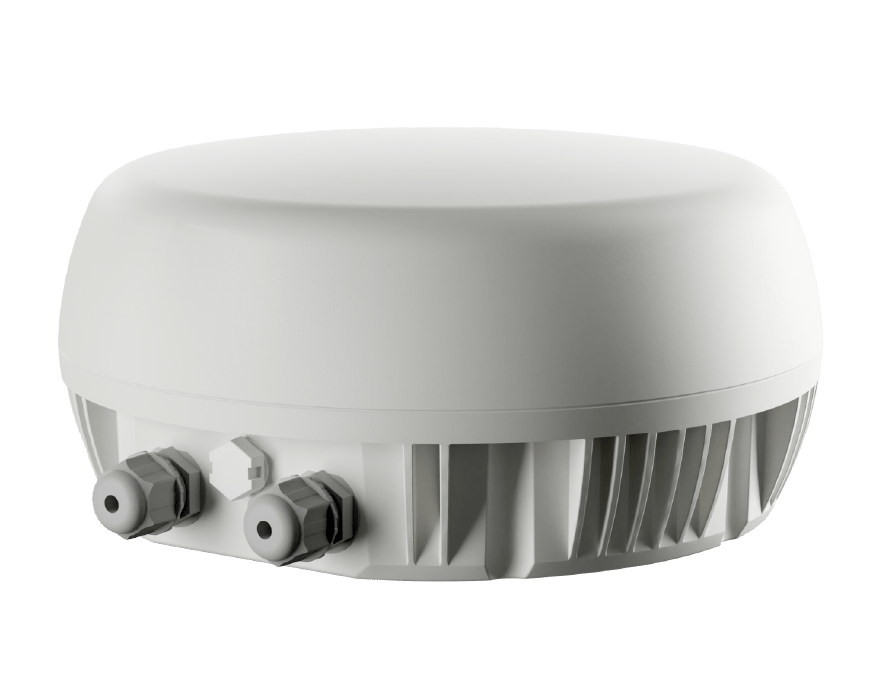

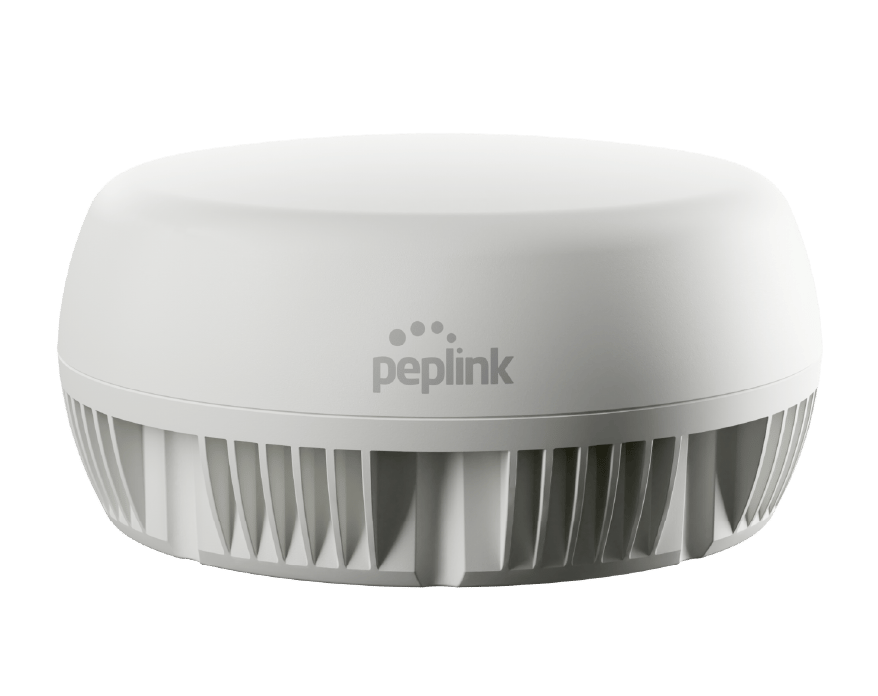

Peplink Antenna Max (ANT-MAX). UV-stable PC enclosure, IP68, −40°C to 80°C.
4× cellular (SMA), 2× Wi-Fi (RP-SMA), 1× GPS (SMA). White.
Fits BR1 Mini series, Transit Duo Pro, BR1 Pro 5G, and listed adapters. Non-PoE routers need Splitter Max.

Cellular

Four elements, 617–6000 MHz. Peak gain up to 6.6 dBi (Peplink, band-dependent).

Wi-Fi

Two elements. Peak gain 5.4 dBi (2.4 GHz) / 7.4 dBi (5 GHz) on the datasheet.

Where it fits

Deck, pole, wall, or surface mount on vehicles and vessels. L-mount set in the box; deck-mount kits are separate.
Antenna Max S is a different enclosure (Starlink Mini hybrid) — do not assume this SKU is the S variant.

Request a quote.

Use cases

Low-loss integral cellular antenna for BR1 Mini, BR1 Pro 5G, and Transit Duo Pro.
Vehicle and exposed installs that do not want a separate Puma/Maritime run.
Always quote Splitter Max with it; the rugged kit already bundles both.
