Balance 310 is the wired branch box: dual 2.5G Ethernet WANs (one with PoE+ out for a Dome or Antenna Max), four 10G LAN ports, and gigabit SpeedFusion. There is no modem in this chassis — add HD1 Dome Pro, a 5G adapter, or Starlink as WANs.
Description
- Peplink Balance 310 (BPL-310-PRM). Fanless. Drop-in mode and high availability.
- Recommended users 50–500.
- PoE+ WAN can power a 5G Dome or Antenna Max (50–56 V DC in required for PoE out).
Wi-Fi
- No onboard Wi-Fi radio — pair with AP One AX or UniFi APs on the LAN.
- AP and switch controller (30 / 50 with licence add-on).
Modem
- No embedded cellular modem.

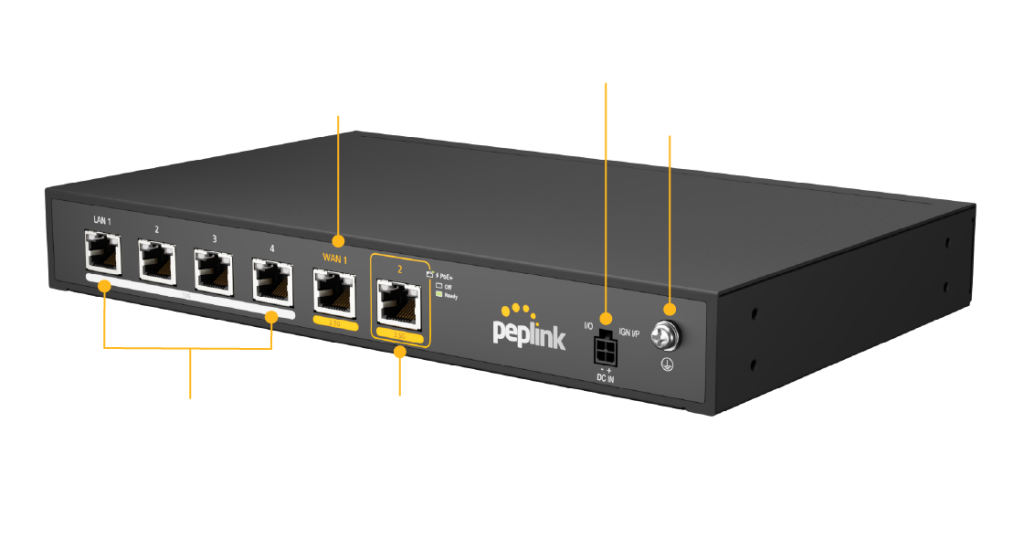

- 2× 2.5G Ethernet WAN (second port configurable WAN/LAN), 4× 10G LAN.
Speeds
- Router throughput 4 Gbps.
- SpeedFusion: 1 Gbps unencrypted / 1 Gbps 256-bit AES.
Power
- 4-pin Micro-Fit 12–56 V DC; bundled 54 V adapter. Ignition sensing.
- 32 W nominal / 39 W max without PoE output. 30 W PoE budget.
- Operating temperature 0°C to 40°C.
Where it fits
- Indoor or vehicle racks that already have Starlink or fibre and need a LAN core.
- Choose Balance 310 5G when the 5G modem, Wi-Fi 7, and PoE LAN should live in the same chassis.
