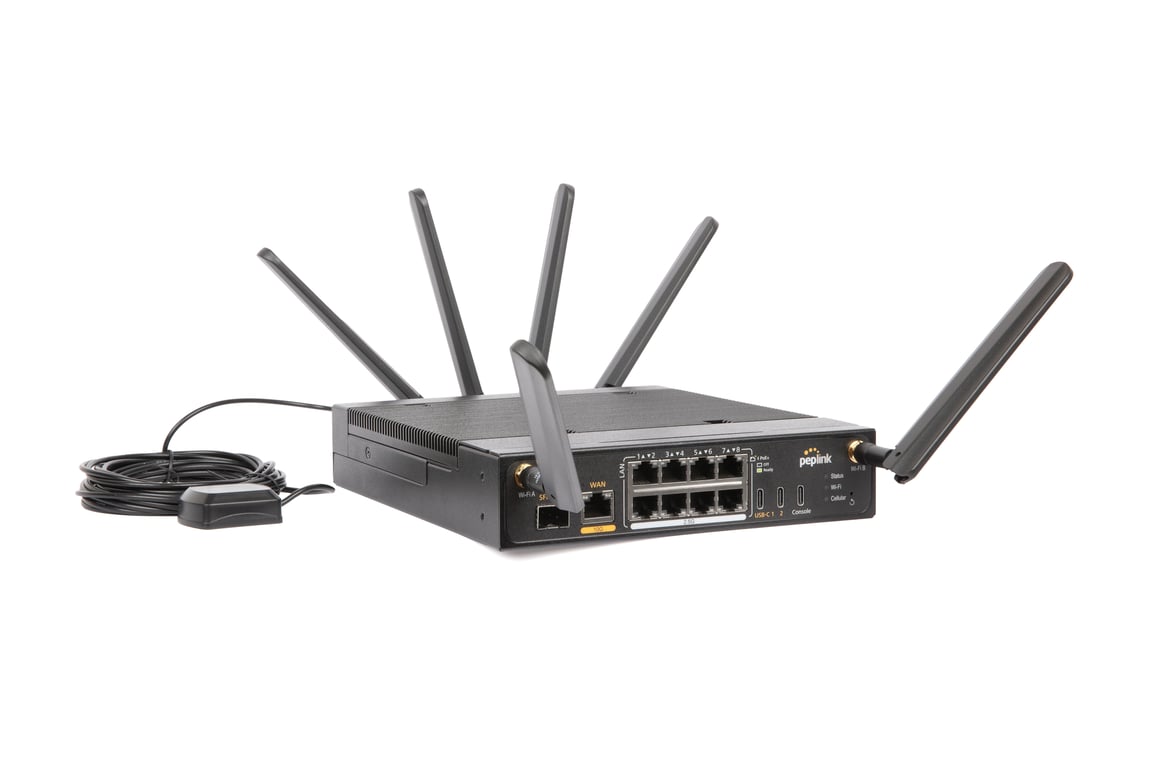

Balance 310 5G puts the WAN edge and the LAN core in one chassis: a global 5G modem, Wi-Fi 7, 10G copper plus SFP+, and eight PoE+ LAN ports so cameras and APs take power from the router. Dual power inputs and a −40°C to 65°C rating keep it honest on vehicles and plant as well as branches.
Description
- Peplink Balance 310 5G (BPL-310-5GK-T-PRM). Docker edge compute (8 GB).
- Recommended users 50–500. Fanless industrial chassis with GPS.
Wi-Fi
- Wi-Fi 7, 2×2 MIMO, simultaneous dual-band.
- AP and/or Wi-Fi WAN. 2× RP-SMA Wi-Fi connectors.
Modem
- 1× embedded 5G modem with redundant SIM slots.
- Nano-SIM, Peplink eSIM, BYO eSIM, RemoteSIM / FusionSIM.

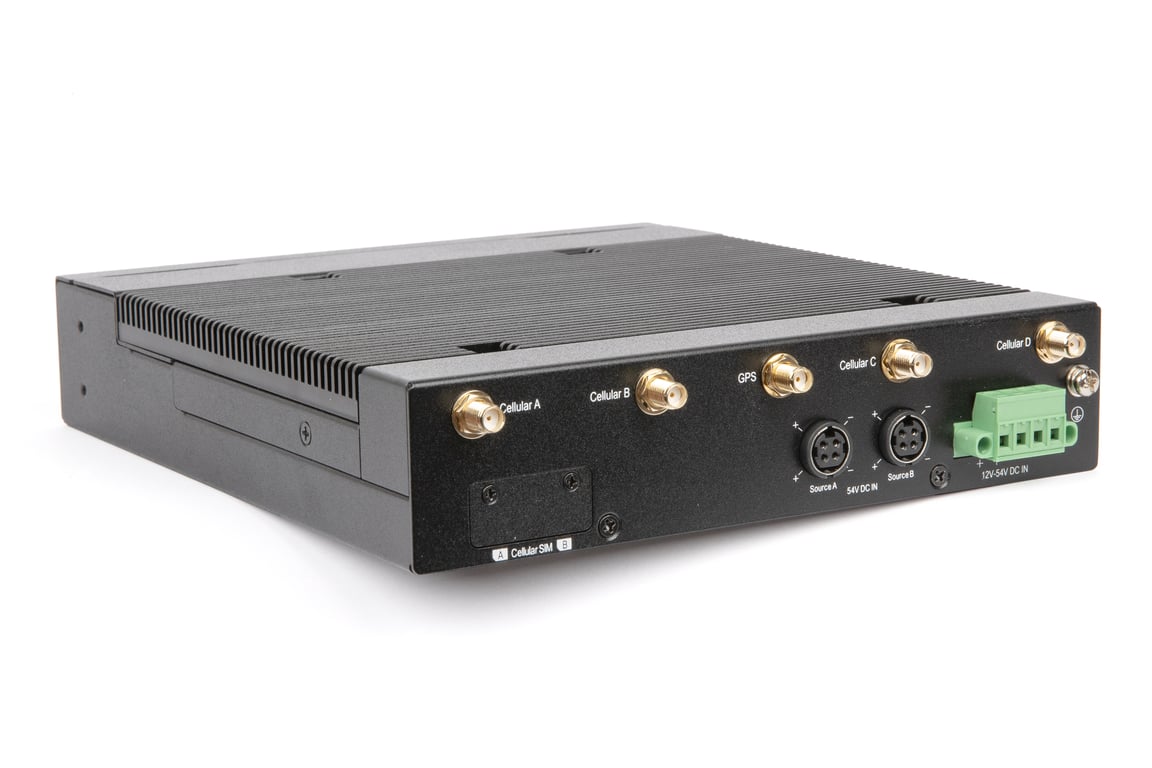

- 4× SMA cellular plus 1× SMA GPS. Two USB-C WANs for a second 5G adapter or dongle.
Speeds
- Router throughput 4 Gbps.
- SpeedFusion: 1 Gbps unencrypted / 1 Gbps 256-bit AES.
- Cellular max theoretical: 5G 4.1 Gbps / 900 Mbps; Cat-20 2 Gbps / 211 Mbps. Peak radio rates are not a site guarantee.
- 1× 10G Ethernet WAN, 1× 10G SFP+ (WAN or LAN), 8× 2.5G PoE+ LAN.
Power
- Dual 54 V DIN plus 12–54 V terminal block. 240 W PoE budget (50–54 V in required for PoE out).
- 27 W nominal / 54 W max without PoE and USB-C output.
Where it fits
- Branches, vessels, and vehicles that want one box instead of router + switch + AP controller.
- B One 5G when you do not need PoE LAN or 10G; BR2 Pro when two 5G modems matter more than a LAN core.
