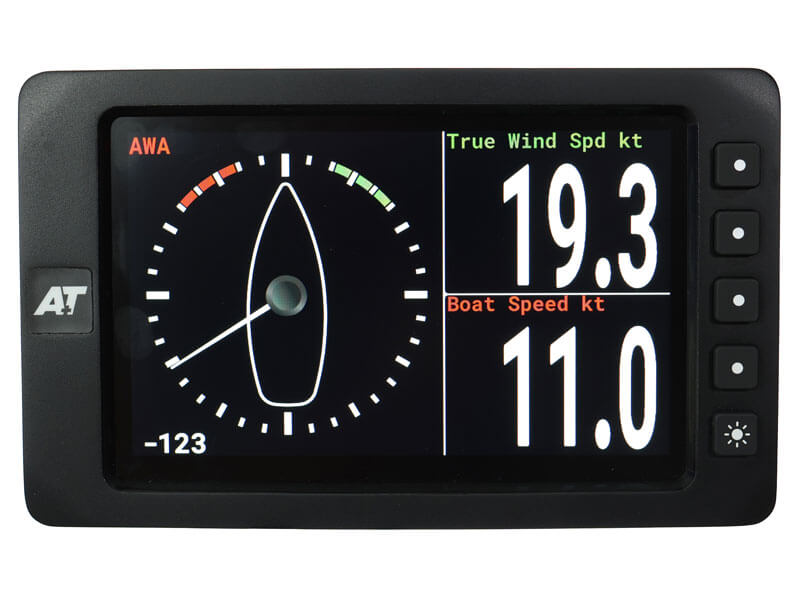

The A+T QBD7 is a 7 inch full colour display for superyachts and race boats. Panels can show numbers, graphs, analogue dials and bar formats with conditional colouring, such as a load bar that turns red above a safe working load, and any number of panels and pages can be configured with context switching. It mounts from the front with a bezel that is available with buttons, for use as a multi function display, or without buttons as a stand-alone display, in portrait or landscape.
This is the Ethernet version, which connects over A+T Ethernet (full connectivity with A+T ATP processors). The display has an 800 x 480 screen, measures 211 x 125 x 36 mm, weighs 1,006 g and runs on 10-40 V DC, drawing about 9 W at maximum brightness. It is IP68 rated, tested at 1 m for more than 24 hours, and works at temperatures of 70°C plus. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Screen: 7 inch full colour, 800 x 480 pixels
- Backlight: 1,500 nit (product sheet; manual states 1,400 cd/m2), wide viewing angle
- External size: 211 x 125 x 36 mm
- Power: 10-40 V DC, 8.9 W at maximum brightness (manual states 9.4 W)
- Weight: 1,006 g
- Pages: up to 6 with selector button (contact closure)
- Mounting: front mounting with bezel, with buttons (use as MFD) or without buttons (stand-alone)
- Waterproofing: IP68, tested at 1 m for over 24 h
- Working temperature: 70°C plus
- Orientation: portrait or landscape
- Network interface: A+T Ethernet (full connectivity with A+T ATP processors)
Downloads: QBD7-V1.4.pdf, AT-QBD-HFD-MANUAL.pdf, QBD_MOUNTING_TEMPLATE.pdf
