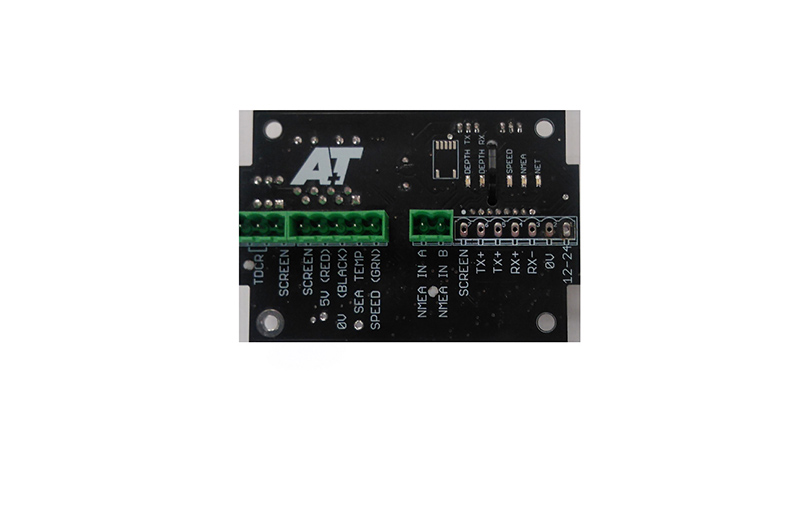

This A+T interface card is for boat speed, sea temperature and 170 kHz depth, with an additional NMEA0183 input. It fits inside the ATP processor case. The ATP1 case has room for one card in addition to the standard speed/depth and wind cards. All configuration and calibration is done from the ATP processor webserver.
Specifications
- Inputs: paddlewheel pulse log, sea temperature, 170 kHz depth transducer (depth sounder built in, minimum depth and gain settings)
- Additional NMEA0183 input: 1
- Format: plug-in card for ATP processor case
Downloads: AT-Processor-V1.7.pdf, ATP1-Processor-V3.1.pdf, ATP2-V3.1.pdf
