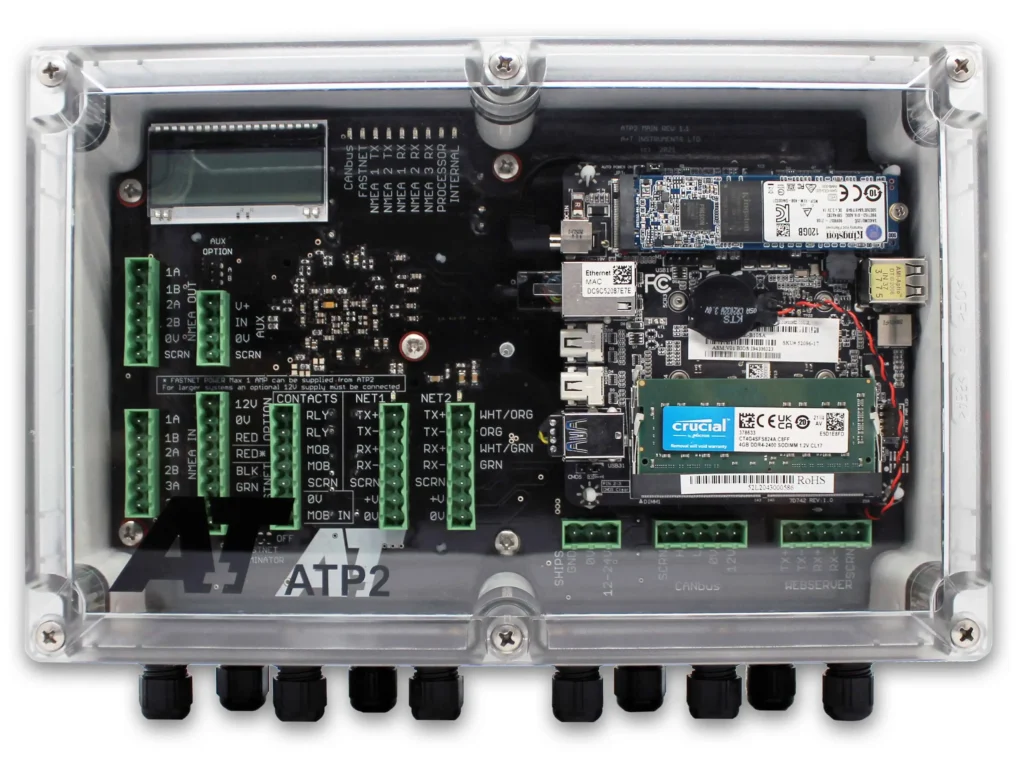

The ATPLT Pilot Processor is the core of the A+T autopilot system, designed for racing yachts, superyachts and large cruising and classic yachts. It shares its hardware platform with the ATP2 instrument processor and communicates with the A+T Pilot Control Unit over Ethernet. At least one A+T Pilot Head Display is needed to start and stop the pilot and send steering commands.
The processor can run as a stand-alone pilot or connect to existing systems over A+T Ethernet, Fastnet (B&G H2000, H3000 and WTP2/3), N2K compatible CANbus and NMEA0183. It accepts commands from A+T PHDs, B&G H2000/H3000 pilot displays, N2K pilot controls and compatible plotters, and follow-up or non-follow-up tiller controls. All set-up, calibration and commissioning is done through the webserver, which also allows data logging and remote support from A+T. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Hardware platform: common with ATP2
- Power: 10-36 V DC (12 or 24 V, 5 A fuse or breaker)
- Weight: 1.5 kg
- Operating temperature: -10 to +70°C
- Interfaces: A+T Ethernet (links to Pilot Control Unit), Fastnet (B&G H2000, H3000, WTP2/3), CANbus N2K compatible, NMEA0183 3 in / 2 out, AUX input for follow-up and non-follow-up tiller, relay contacts
- Set-up: webserver
Downloads: AT-Pilot-User-Guide-and-Controller-installation-v1.01.pdf, AT-ATP2_Pilot-installation-guide-v1.0.pdf
