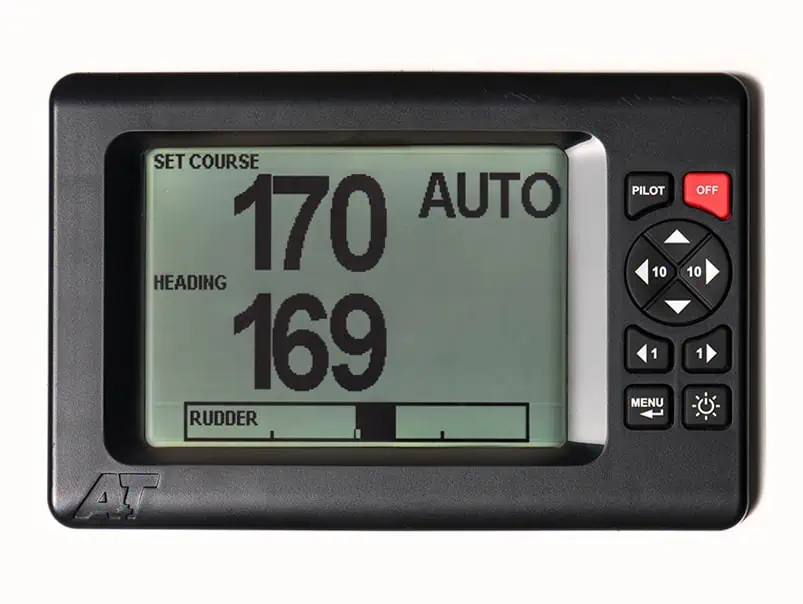

The A+T Pilot Head Display (PHD) is the control display for the A+T autopilot, used to engage and disengage the pilot, select modes and make course changes, and it can also show instrument data. It uses the same case, 113 x 173 mm, and 94 x 152 mm cut-out as the A+T MFD, so it matches other A+T and B&G H2000/H3000 displays at the helm.
This is the Fastnet version, which connects over Fastnet. The display runs on 10-40 V DC, draws 1.1 W with the backlight off and 2.1 W with it on, weighs 466 g and has an NMEA0183 connection and a Bluetooth link for configuration. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Power: 10-40 V DC
- Consumption: 1.1 W backlight off, 2.1 W backlight on
- Overall size: 113 x 173 mm
- Cut-out: 94 x 152 mm
- Weight: 466 g
- Extra connections: NMEA0183
- Bluetooth: yes
- Network interface: Fastnet
Downloads: PHD-Product-Sheet-V5.4.pdf, AT-MFD_PHD-user-guide-v1.1.pdf, AT-Pilot-User-Guide-and-Controller-installation-v1.01.pdf
