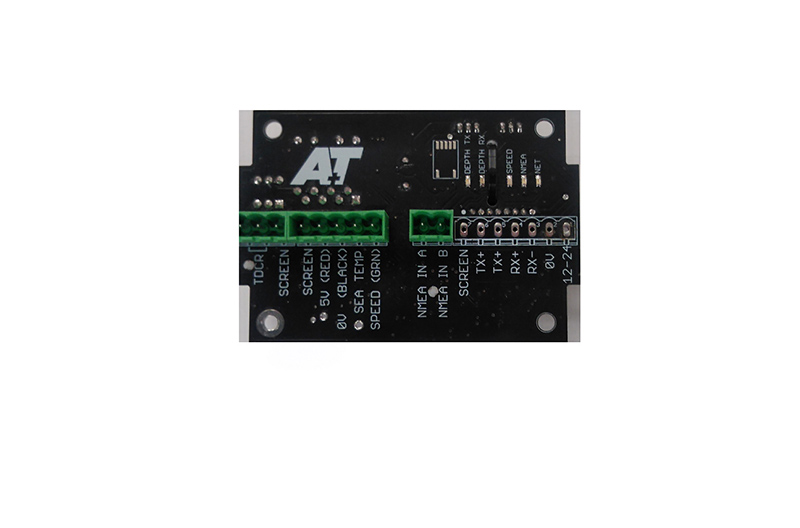

This A+T interface card is with four analogue voltage inputs and one isolated 0-20 mA (4-20 mA) current loop input. It fits inside the ATP processor case. The ATP1 case has room for one card in addition to the standard speed/depth and wind cards. All configuration and calibration is done from the ATP processor webserver.
Specifications
- Analogue inputs: 4 x 0-12 V, each configurable
- Current loop: 1 x isolated 0-20 mA (also 4-20 mA)
- Reference supplies: 5 V and 12 V
- Format: plug-in card for ATP processor case
Downloads: AT-Processor-V1.7.pdf, ATP1-Processor-V3.1.pdf, ATP2-V3.1.pdf
