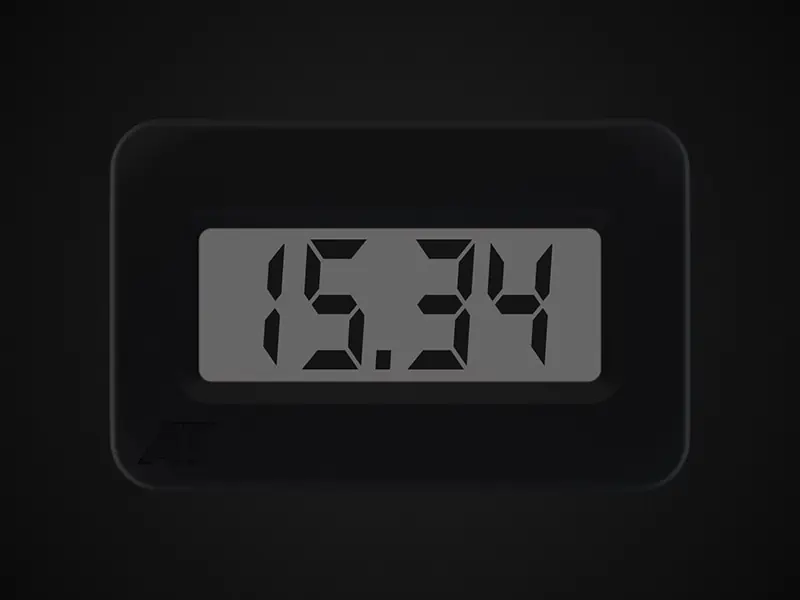

The A+T MINI is a very small, light single data display, typically mounted next to a winch or control to show one value such as load or string-pot position. It is fully sealed with a bonded LCD so it can be fitted in the wettest areas, and has red or green backlighting.
The MINI is driven either from an A+T MFD, which can run up to four MINIs and sets the data item and lighting, or directly from an A+T DLA1 loadcell amplifier, which also accepts a linear input. It measures 92 x 58 x 22 mm, weighs 92 g, runs on 10-40 V DC and works at temperatures of 70°C plus.
Specifications
- Dimensions: 92 x 58 x 22 mm
- Weight: 92 g
- Power: 10-40 V DC
- Display: single data item, bonded LCD, fully sealed
- Backlight: red or green, user selectable
- Driven by: A+T MFD (up to 4 MINIs per MFD) or A+T DLA1 loadcell amplifier
- Working temperature: 70°C plus
Downloads: AT-Mini-display-V2.2.pdf, AT-Mini-user-guide-v1.0.pdf
