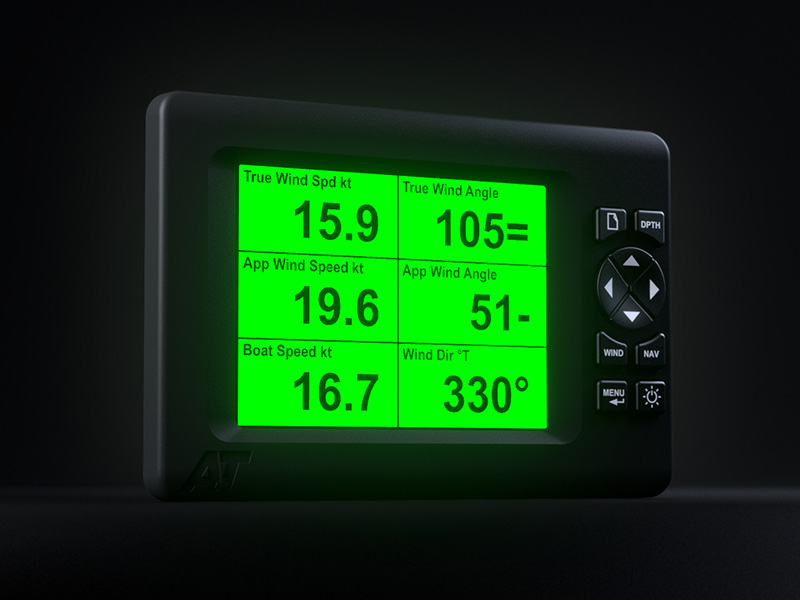

The A+T Multi Function Display (MFD) is a high contrast instrument display that fits the cut-out and fixings of the B&G H2000 FFD, H3000 FFD and H3000 GFD, making it a straightforward upgrade for existing installations. Pages can show between one and six data items and are scrolled with the front buttons. Configuration and backlight options are set over Bluetooth, and the display cable also carries two-way NMEA0183, a MOB input and a drive for up to four A+T MINI displays.
This is the Fastnet version, which connects over Fastnet (legacy B&G H2000/H3000 systems). The unit runs on 10-40 V DC and draws 1.1 W with the backlight off and 2.1 W with it on. It measures 113 x 173 mm overall, needs a 94 x 152 mm cut-out, weighs 466 g and is IP68 rated after a 24 hour immersion test. A silicone suncover is supplied. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Power: 10-40 V DC
- Consumption: 1.1 W backlight off, 2.1 W backlight on
- Overall size: 113 x 173 mm
- Cut-out: 94 x 152 mm
- Projection: 9 mm in front, 31 mm behind
- Fixings: 4 x M4 studs
- Weight: 466 g
- Waterproofing: IP68 (24 h immersion tested)
- Operating temperature: -10 to +70°C
- Cable: 3 m pigtail
- Extra connections: two-way NMEA0183, MOB input, drives MINI displays
- Bluetooth: yes
- Pages: 1 to 6 data items per page
- Network interface: Fastnet (legacy B&G H2000/H3000 systems)
Downloads: MFD-Product-Sheet-V6.1.pdf, MFD-Fitting-V1.1.pdf, AT-MFD_PHD-user-guide-v1.1.pdf
