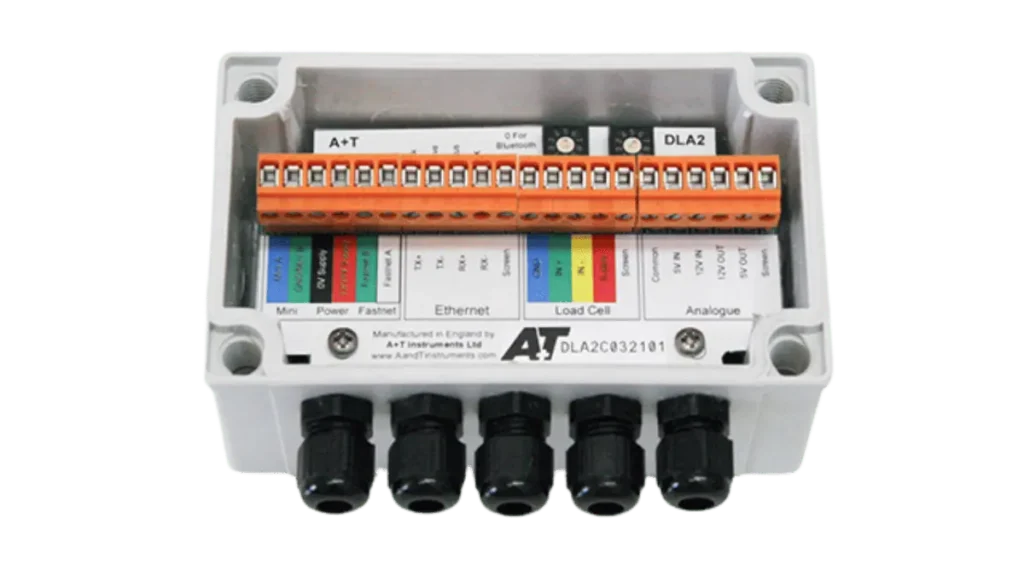

The A+T DLA2 loadcell module is part of the A+T processor system and is also a direct replacement for the discontinued B&G Fastnet loadcell amplifier. As well as the loadcell input it provides an additional configurable linear channel (0-5 V or 0-16 V) with a 5 V sensor supply. It runs on 9-32 V DC and has a Bluetooth link for set-up. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Type: loadcell amplifier module for A+T processor systems
- Power: 9-32 V DC
- Additional input: configurable linear channel, 0-5 V or 0-16 V
- Sensor supply: 5 V
- Bluetooth: yes
- Outputs: Fastnet only (Ethernet variant: ATDLA05)
- Replaces: discontinued B&G Fastnet loadcell amplifier
Downloads: Loadcell-Module-DLA2-V3.1.pdf, DLA2-Manual-Firmware-1.06-Revision-1.00.pdf
