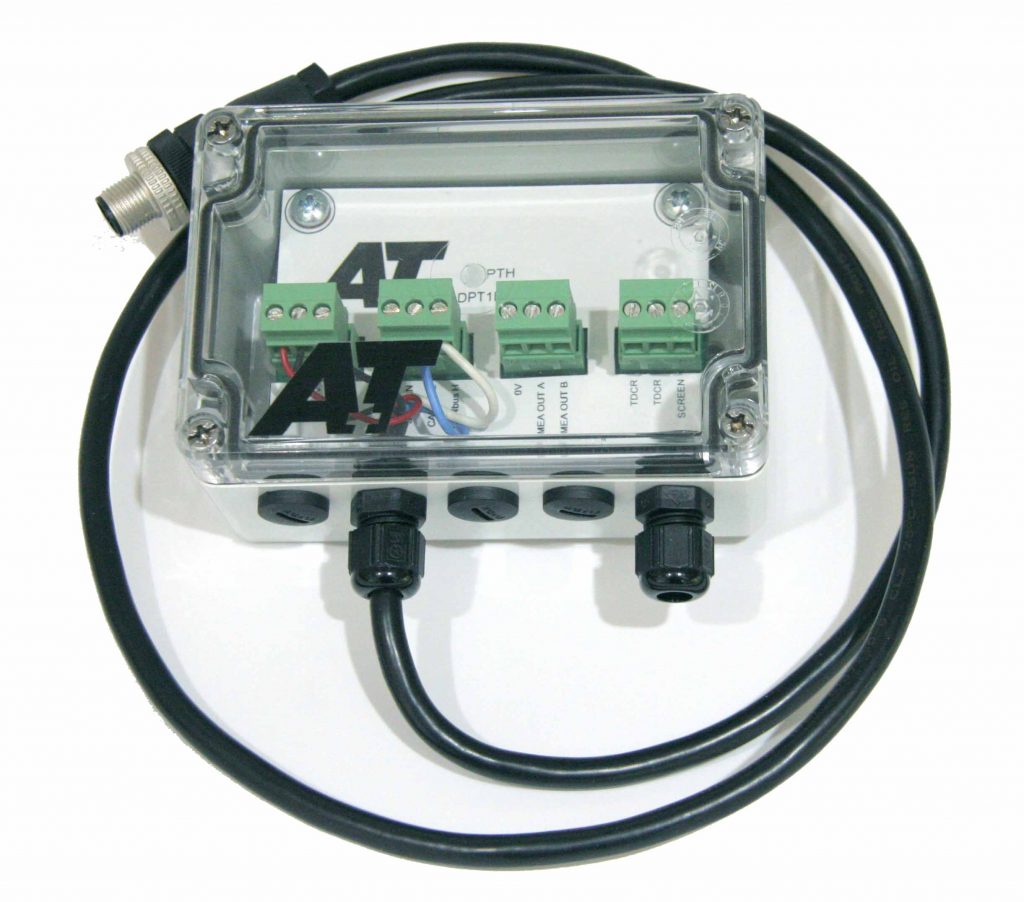

The A+T depth module drives a 170 kHz depth transducer, such as the A+T SOV depth sensor or 32 mm housing depth sensor, and outputs depth on NMEA 2000 compatible CANbus and NMEA0183 ($SDDPT and $PATSN sentences). This allows 170 kHz transducers originally used with B&G H2000 and H3000 systems to be used with NMEA 2000 compatible systems; A+T has tested it with B&G H5000.
The module runs on 10.5-32 V and draws 0.75 W (LEN 2). The transmitter delivers more than 375 V peak to peak and the receiver sensitivity is better than 0.1 mV, and a matching transformer allows transducer cable runs of at least 30 m. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Type: depth sounder module for 170 kHz transducers
- Outputs: NMEA 2000 compatible (CANbus) plus NMEA0183 ($SDDPT, $PATSN)
- Power: 10.5-32 V, 0.75 W, LEN 2
- Transmitter: over 375 V peak to peak
- Receiver sensitivity: better than 0.1 mV
- Transducer cable: at least 30 m with matching transformer
- Tested with: B&G H5000
- Also called: ATBB-Depth/170
Downloads: AT-Depth-Module-Installation.pdf, SOV-Depth-for-H5000-V1-1.pdf
