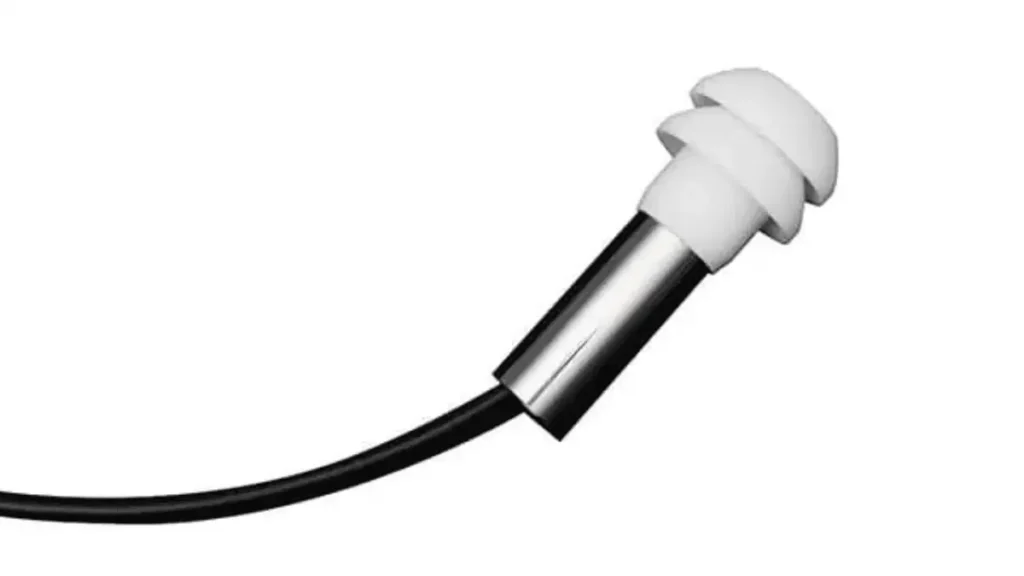

The A+T air temperature sensor is an improved design and a direct replacement for the discontinued B&G air temperature sensor, part 224-00-066. It is supplied with a 5 m cable, with custom lengths available, and mounts with a standard 1 inch tube clamp. Wiring is red for supply, blue for 0 V and green for signal. On an A+T processor it is powered from the 5 V reference and set up as "Air Temp" on the analogue page of the webserver. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Type: air temperature sensor
- Replaces: B&G 224-00-066 (discontinued)
- Cable: 5 m, custom lengths available
- Mounting: standard 1 inch tube clamp
- Wiring: red +V, blue 0 V, green signal
- A+T processor set-up: 5 V supply, "Air Temp" function on analogue set-up page
Downloads: AT-Air-Temp-Product-Sheet-V2.4.pdf
