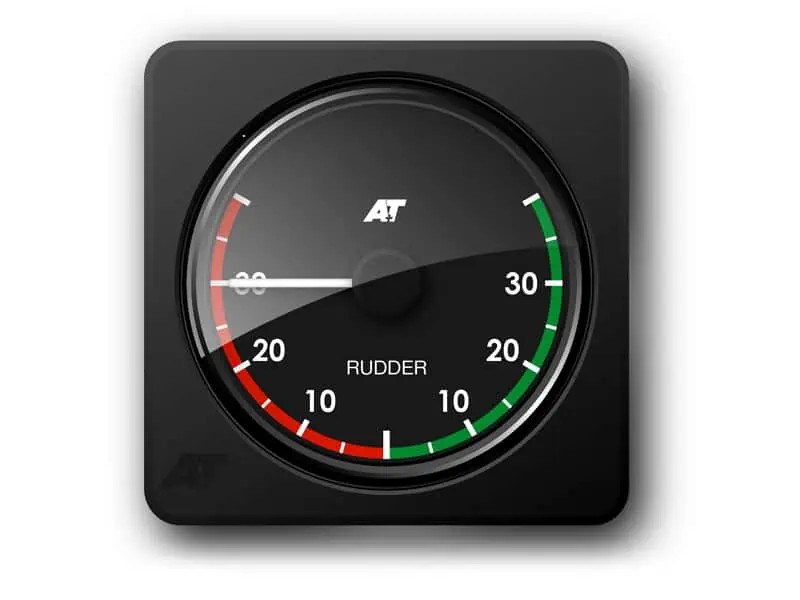

The A+T analogue rudder angle display combines a classic domed glass dial with current mechanical and electronic design. It matches the look of other A+T and B&G displays, measures 113 x 113 mm and fits the standard 70 mm diameter cut-out.
This is the CANbus version, which takes rudder angle data over CANbus, N2K compatible (H5000, WTP3, Garmin). The design is tested to 1 bar of over-pressure, the domed glass lens can be replaced if damaged, and a removable desiccant can be reactivated if moisture gets in. Configuration and backlight colour are set over Bluetooth. The display runs on 10-40 V DC and weighs 436 g. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Size: 113 x 113 mm
- Cut-out: 70 mm diameter
- Weight: 436 g
- Power: 10-40 V DC
- Pressure tested: 1 bar over-pressure
- Lens: domed glass, replaceable
- Desiccant: removable, reactivatable
- Bluetooth: configuration and backlight colours
- Dial: rudder angle
- Interface: CANbus, N2K compatible (H5000, WTP3, Garmin)
Downloads: AT-Analogue-Product-Sheet-V7.2.pdf, AT-Analogue-user-guide-V1.7.pdf
