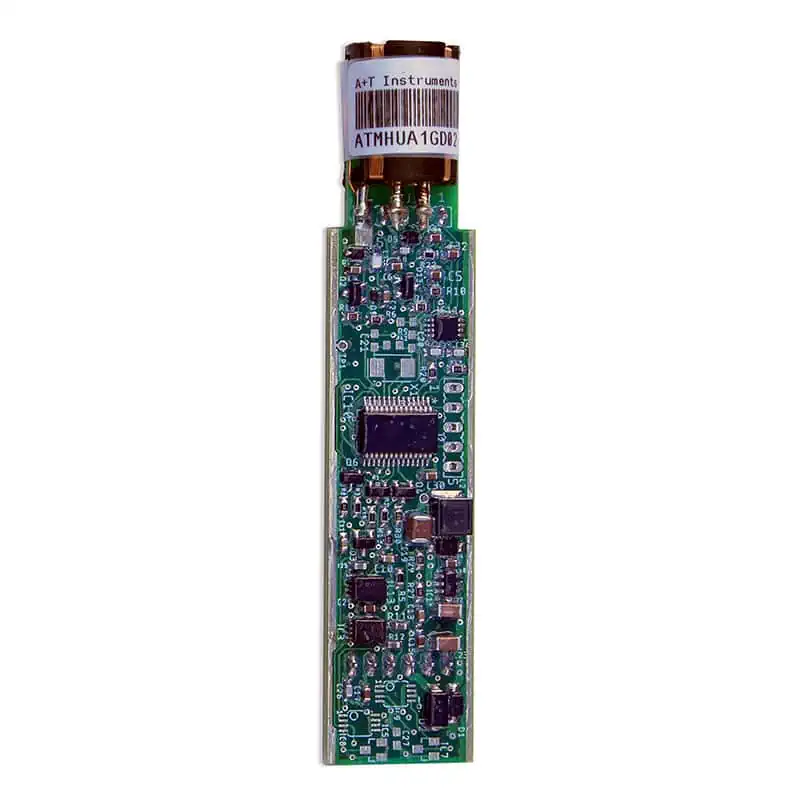

The A+T AT510PC is the digital version of the A+T masthead unit circuit board. It fits into B&G 213, 310 and 700 series wind sensor housings and the A+T wind sensor, and outputs highly accurate, undamped wind data at 20 Hz as NMEA0183HS at 38,400 baud. Each board is individually calibrated and zero set to 0.2 degrees.
An adaptor is supplied so the board can be used with either a 6 core mast cable or a 4 core NMEA0183 cable, and A+T offers a converter for NMEA 2000 compatible output. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Type: digital masthead unit PCB
- Fits: B&G 213, 310 and 700 series wind sensor housings, A+T wind sensor
- Output: NMEA0183HS, 38,400 baud, 20 Hz, undamped ($WIMWV)
- Supply: 5-40 V (A+T shop) or 5-30 V, 50 mW (A+T connection sheet)
- Cable adaptor: supplied for 6 core or 4 core NMEA0183 cable
- Calibration: individually calibrated and zero set to 0.2 degree
Downloads: AT-510-NMEA-MHU-connections.pdf, AT-Wind-Sensor-Horizontal-500-and-213-parts-v2.6.pdf
