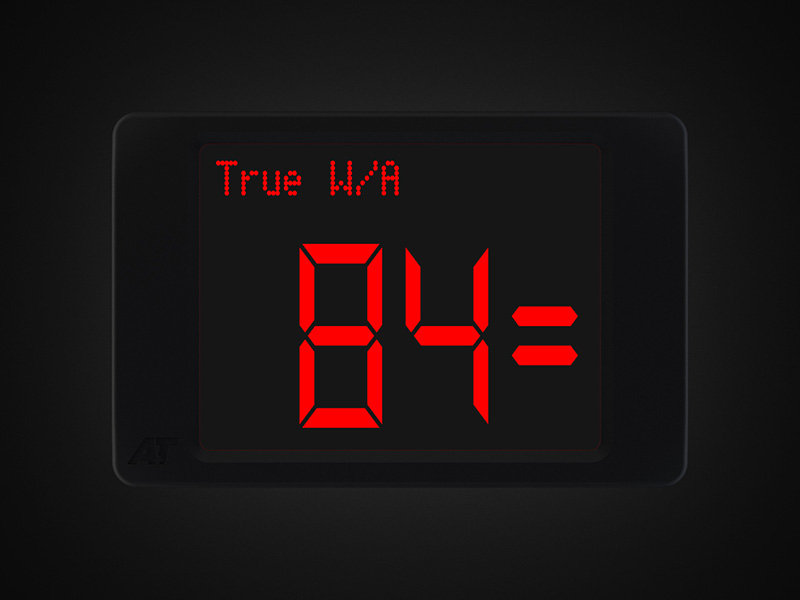

The A+T 3020 is a high contrast single data display designed to replace the B&G 20/20 in the same cut-out while showing digits the height of a B&G 30/30, so numbers can be read at a much greater distance. The display updates at more than 25 Hz and remains clear in direct sunlight.
This is the Ethernet version, which connects over A+T Ethernet (A+T ATP processors). The 3020 runs on 10-40 V DC and draws 0.9 W with the backlight off and 1.5 W with it on. It measures 113 x 173 mm overall, needs a 94 x 152 mm cut-out and weighs 520 g. A silicone suncover is supplied. A+T Instruments is not affiliated with B&G or Navico; B&G product names are used for compatibility reference only.
Specifications
- Power: 10-40 V DC
- Consumption: 0.9 W backlight off, 1.5 W backlight on
- Overall size: 113 x 173 mm
- Cut-out: 94 x 152 mm
- Weight: 520 g
- Update rate: over 25 Hz
- Display: high contrast, digits the height of a B&G 30/30
- Network interface: A+T Ethernet (A+T ATP processors)
Downloads: 3020-Product-Sheet-V4.4.pdf, AT-3020-user-guide-v1.1.pdf
