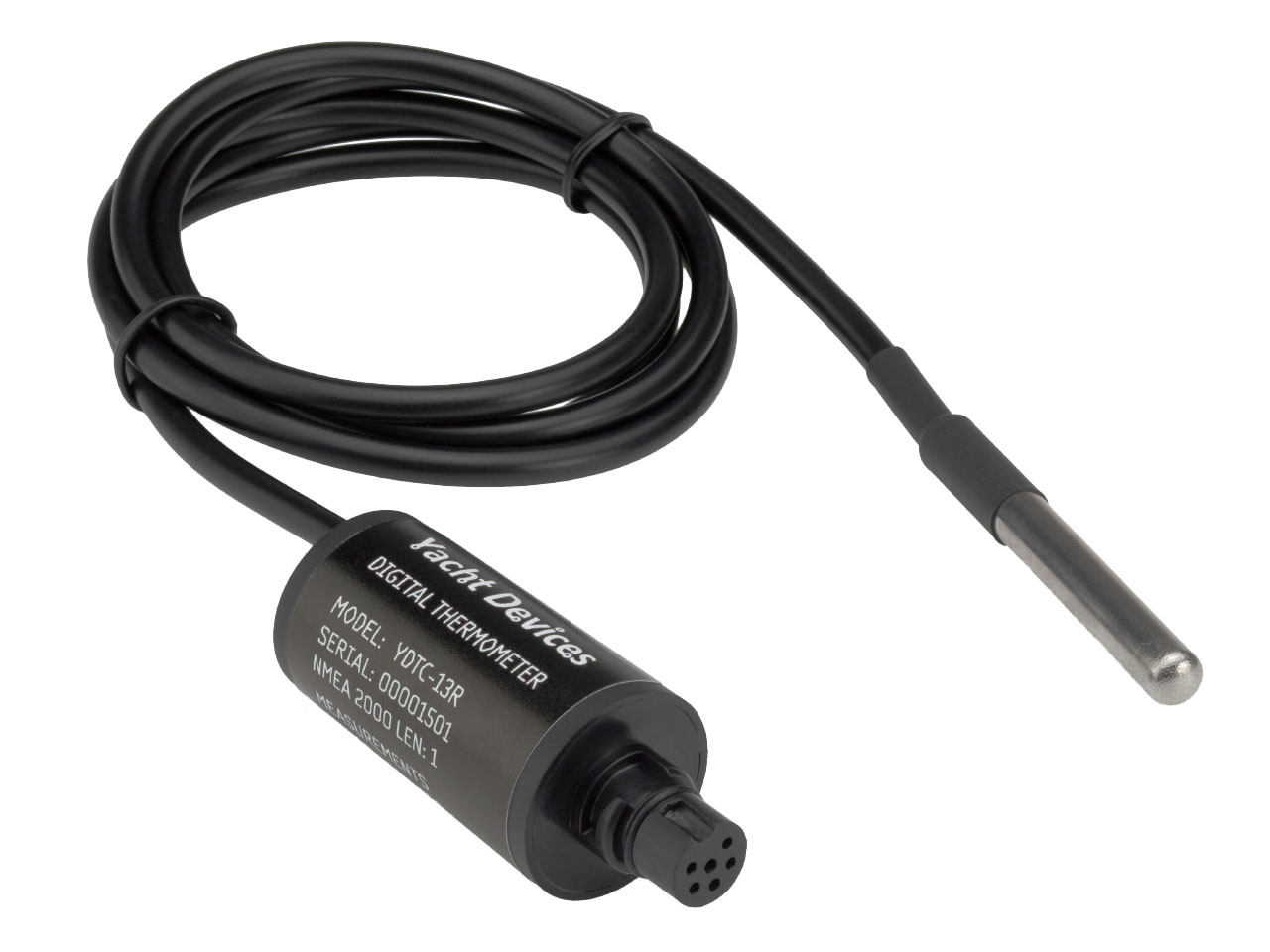

The YDTC-13R is a high-precision NMEA 2000? temperature sensor designed for marine applications.
It provides real-time temperature monitoring to chartplotters and MFDs.
Technical Specifications:
– Supply voltage: 9?16 VDC (via NMEA 2000 bus)
– Current consumption: <40 mA
– Accuracy: ?0.2 ?C
– Waterproof stainless steel probe with cable
– Connector: NMEA 2000 Micro-C or Raymarine SeaTalk NG (depending on suffix)
– Certifications: CE, RoHS, IEC 60945 compliant
Applications:
– Engine room monitoring
– Refrigeration/freezer control
– Cabin climate systems
– Tank fluid monitoring
